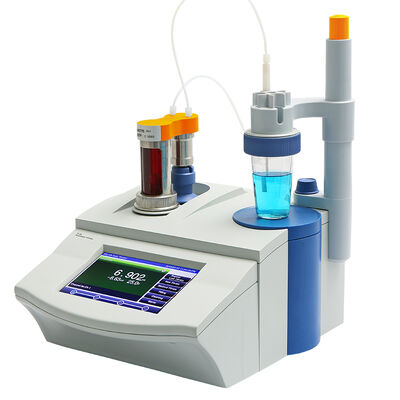

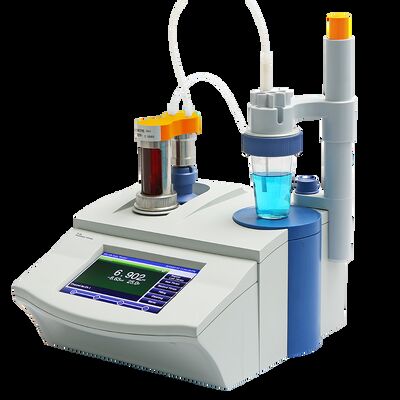

ZDJ-5B Automatic potentiometric titrator titration apparatus

ZDJ-5B Automatic potentiometric titrator titration apparatus

    • ZDJ-5B Automatic potentiometric titrator titration apparatus
    • ZDJ-5B Automatic potentiometric titrator titration apparatus
  • ZDJ-5B Automatic potentiometric titrator titration apparatus

    Product Details:

    Place of Origin: CHINA
    Brand Name: REX
    Certification: CE
    Model Number: Ti-50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: 540x490x480mm/13Kg
    Delivery Time: 15-20 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 100 units per month
    Contact Now
    Detailed Product Description
    Range: (-1999.0~1999.0) Mv, (0.00~14.00)pH Resolution: 0.1mV, 0.01pH
    Accuracy: PH: ±0.01pH Mv: ±0.03%FS

    Features

    1,7 inch color touchscreen and smart guide system.

    2,Titration methods, curves and results are displayed in detail.

    3,1 extra burette driver can be installed (optional).

    4,Replaceable burette with high-accuracy (10 ml or 20 ml selectable).

    5,Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc. 6,Support titration modes of DET (dynamic equivalence point titration),MET (monotone equivalence point titration), SET (Preset Endpoint Titration), MAT (manual titration).

    7,pH calibration and measurement are supported.

    8,Up to 100 user-defined methods and 10 user-defined shortcuts.

    9,Auto calculation with pre-defined formula.

    10,Store up to 200 titration data sets (GLP-compliant).

    11,Data analysis feature helps user review, compare and recalculate results.

    12,Data can be easily transferred to printer via RS-232 communication interface..

    13,Titrator can be controlled by computer via USB or RS-232 communication interface. 14,Automatic sampler is supported.


    Model No
    ZDJ-5B
    Burette
    Repeatability
    0.20%
    Accuracy
    10ml Burette: ±0.025ml;20ml Burette: ±0.035ml
    Resolution
    10ml Burette: 1/20000;20ml Burette: 1/10000
    Mechanical Unit
    Resolution
    1/30000
    Charging speed
    (55±10) s (Full burette)
    Measuring Unit
    Range
    (-1999.0~1999.0) mv, (0.00~14.00)pH
    Resolutions
    0.1mV, 0.01pH
    Accuracy
    pH: ±0.01pH mv: ±0.03%FS
    Fluctuation
    (±0.3mV±1bit) /3h
    Temperature Compensation
    Range
    (-5.0~105.0) ℃
    Resolutions
    0.1 ℃
    Accuracy
    ±0.3 ℃
    General
    Power Supply
    AC (110-250) V; (50/60) Hz
    Dimensions /Weight
    340*400*400mm/10Kg



    Standard Package Accessories
    Optional Accessories
    1,10ml Burette
    7,ATC Probe
    1,20ml Burette
    2,Platinum Electrode
    8,Silver Electrode
    2,Auxiliary Burette Driver
    3,pH Electrode (indicator)
    3,Anti-diffusion Capillary
    4,Single Bridge Reference Electrode

    5,Double Bridge Reference Electrode

    6,pH Buffer Powders (4.01, 7.00, 10.01)
