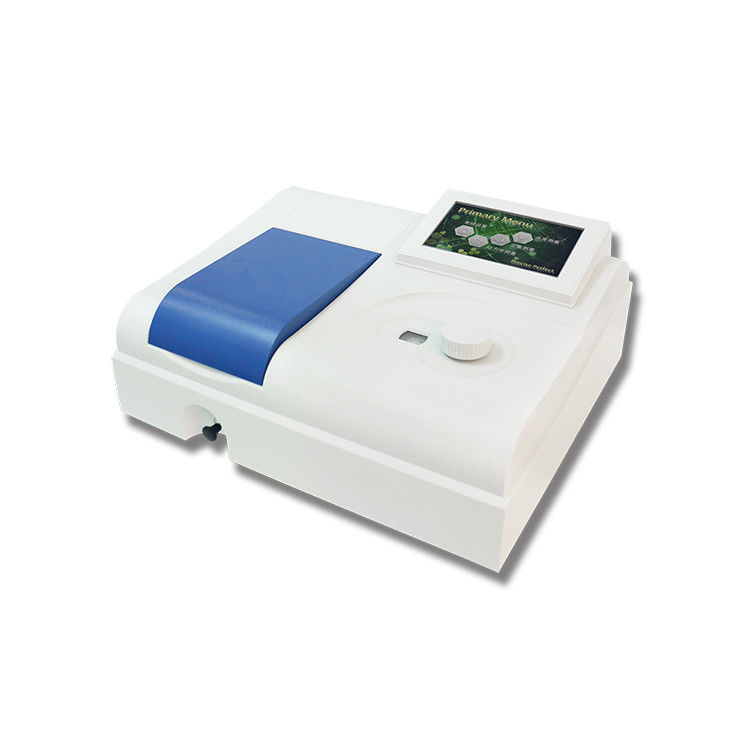

722N single beam VIS Spectrophotometer visible spectrophotometer
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
INESA |
| Certification: |
CE |
| Model Number: |
722N |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
$268.00 |
| Packaging Details: |
640x480x340mm/14Kg |
| Delivery Time: |
3-15 working days |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: |
1000 units per month |
Contact Now
Detailed Product Description
Feature
High quality silicon photometric diode detector and 1200lines/mm diffraction grading ensures high quality accuracy and precision
7 inch color LCD touch screen panel

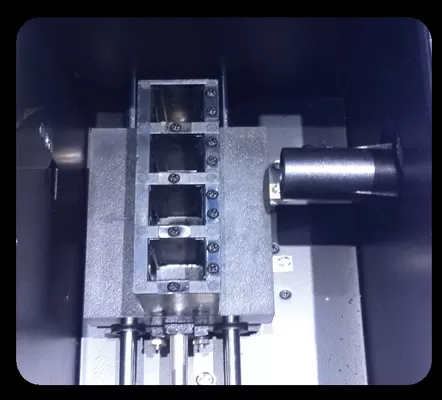

Sample compartment for 5-100mm cuvettes with optional holders
Precision automatic T/A changeover, automatic 0A and 100%T
Direct concentration read-out and concentration factor setting function
Easy to change halogen lamp or deuterium lamp
RS232 interface for data output

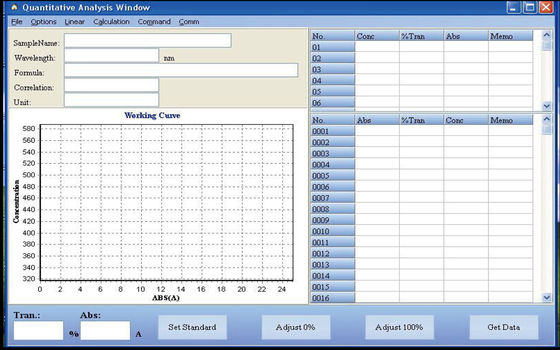

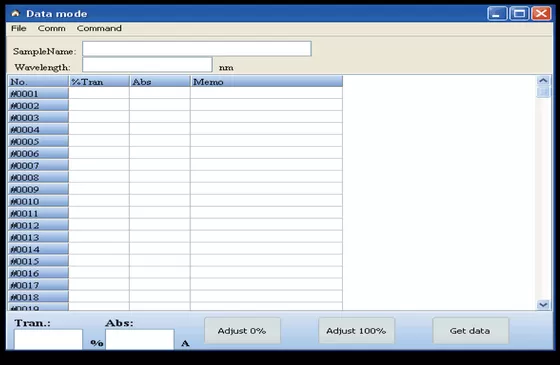

Software optional
|
Model No
|
722N
|
|
Photometry
|
Single Beam
|
|
Monochromator Type
|
Littrow
|
|
Focal Length
|
160mm
|
|
Grating
|
1200 lines/mm
|
|
Detector
|
Silicon Photocell
|
|
Wavelength setting
|
Manual Turn Knob
|
|
Wavelength Range
|
325-1000nm
|
|
Wavelength Accuracy
|
±2nm
|
|
Wavelength Repeatability
|
≤1nm
|
|
Spectrum Bandwidth
|
4nm
|
|
Stray Light
|
≤0.1%T (at 360nm NaNO₂)
|
|
Photometric Range
|
0.0-100.0%T
0-1.999A
0-1999C
|
|
Photometric Accuracy
|
±0.5%T
|
|
Photometric Repeatability
|
≤0.2%T
|
|
Noise
|
100%(T) noise≤0.3%(T), 0%(T) noise ≤0.2%(T)
|
|
Drift
|
±0.5%T/3 min
|
|
Curve Holder size
|
10mm
|
|
Interface
|
RS232
|
|
Power Supply
|
AC 110-240V,50/60Hz,80W
|
|
Package Size/Weight
|
640x480x300mm,14Kg
|
